TORMACH 1100M

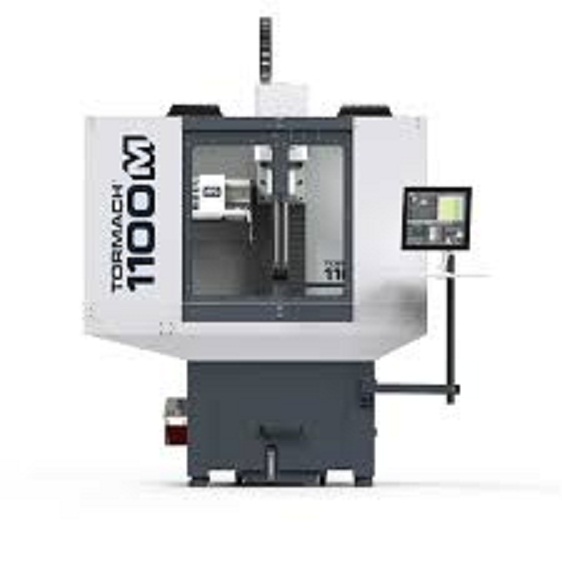

Tormach 1100M CNC Mill
Basic Machine Specifications:
| CNC 770M | CNC 1100M Series | |
| Table Size | 26" x 8" (660mm x 203mm) | 34" x 10.5" (864mm x 280mm) |
| Max Spindle to Column | 8.6" (218mm) | 11" (279mm) |
| Motion Limits in X, Y, Z | (330mm x 190mm x 336mm) | (457mm x 279.4mm x412.7mm) |
| Spindle Taper | R8 | R8 |
| Spindle Power (continuous) | 750 W | 1100 W |
| Spindle Power (peak) | 1300 W (1hp) | 2HP (1.5KW) |
| Spindle Speed | 175 to 10,000 RPM | 7500 RPM |
| Machine Weight | 662 lbs (300 kg) | 1130 lbs (513 kg) |
| Work Piece Weight | 400 lbs | 500 lbs |
| Machine Weight w/ Stand | 908 lbs (412 kg) | 1580 lbs (712 kg) |
| Max Feed Rate | 130 IPM (3300 mm/m) | 90 IPM (2286 mm/m) |
| Power Requirement | 115 VAC 50/60 hz | 230 VAC 50/60 hz |
| Thread Machining: | yes | yes |
